Web Workbench Guide

What it is for

Use the workbench when you want to draft, inspect, and hand off a Noma document without installing an editor extension.

It covers the main Word-style workflows that fit Noma's source-first model:

• Create a new document or load one of the shipped examples.
• Open a local .noma file from disk.
• Format selected text as bold, italic, inline code, or a link.
• Change the current line to H1, H2, or H3.
• Convert selected lines to bullets, numbered lists, quotes, or code blocks.
• Toggle Edit Preview to edit rendered headings, paragraphs, list items,

and quotes directly, with changes synced back to the .noma source.

• Insert Noma blocks for tables, figures, callouts, tasks, controls, math,

headers, footers, page setup, page breaks, comments, change requests, and footnotes.

• Find text in the source.
• Preview safe HTML, inspect diagnostics, jump through the outline, and switch

to AST, LLM, or proof output.

• Paste agent patch ops, generate a browser-side safety proof, and apply only

when the post-document validates without errors.

• Copy a proof summary link that carries hashes, status, diagnostics, and the

operation list without embedding the private source document.

• Copy a shared draft link that carries the current .noma source in the URL

fragment, or a review packet with the draft link, hash, diagnostics, IDs, and LLM context for async handoff.

• Edit ID-bearing ::table and ::dataset blocks through a compact grid that

writes source-preserving table/dataset patch ops.

• Download the current document as .noma, HTML, or JSON.
• Copy LLM context or the DOCX CLI command for Word handoff.
• Print the rendered preview from the browser.

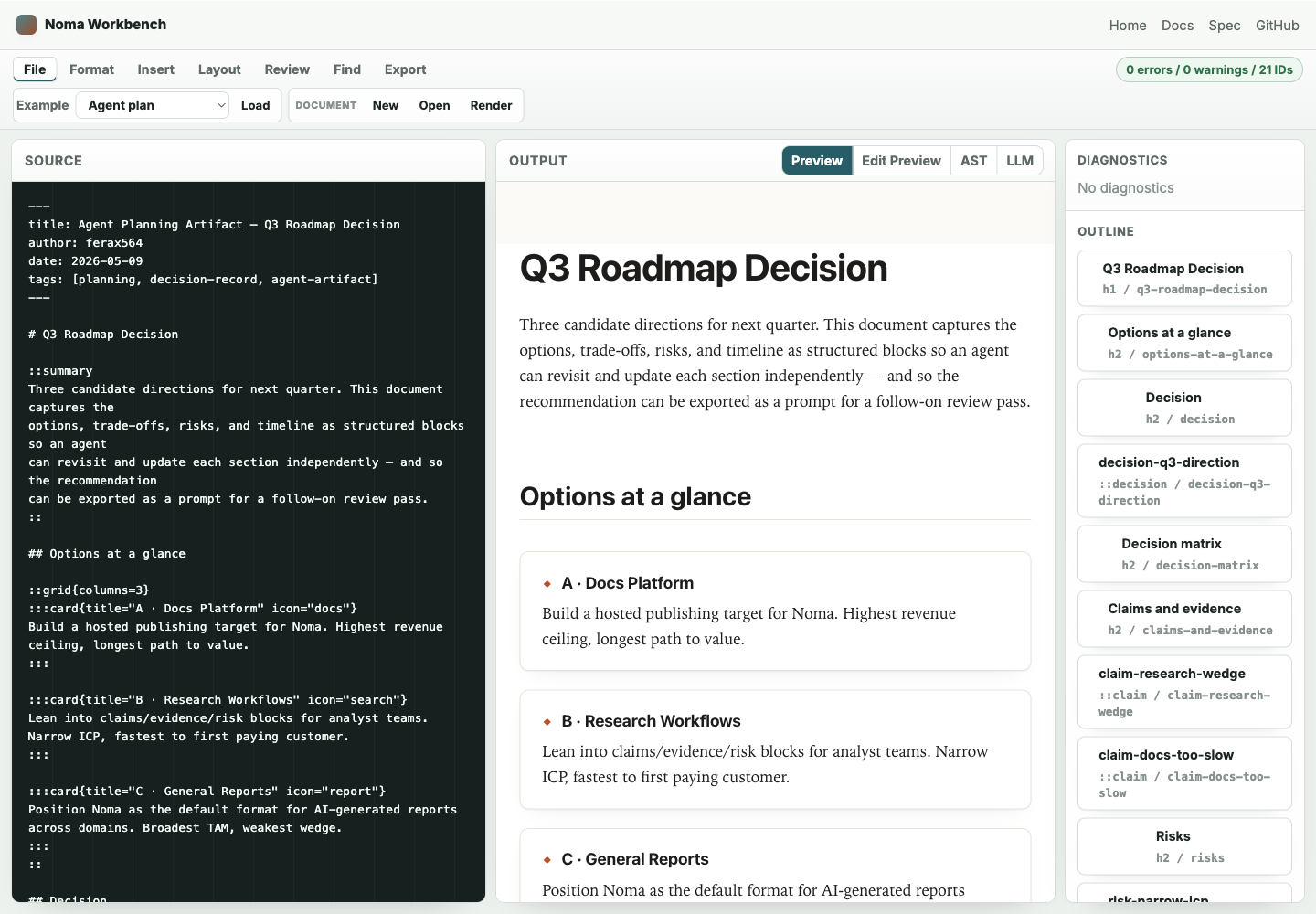

Screen layout

The workbench has four persistent areas:

The browser stores the current source in localStorage so a reload keeps the last draft. Use Download Noma before moving the draft into a repository.

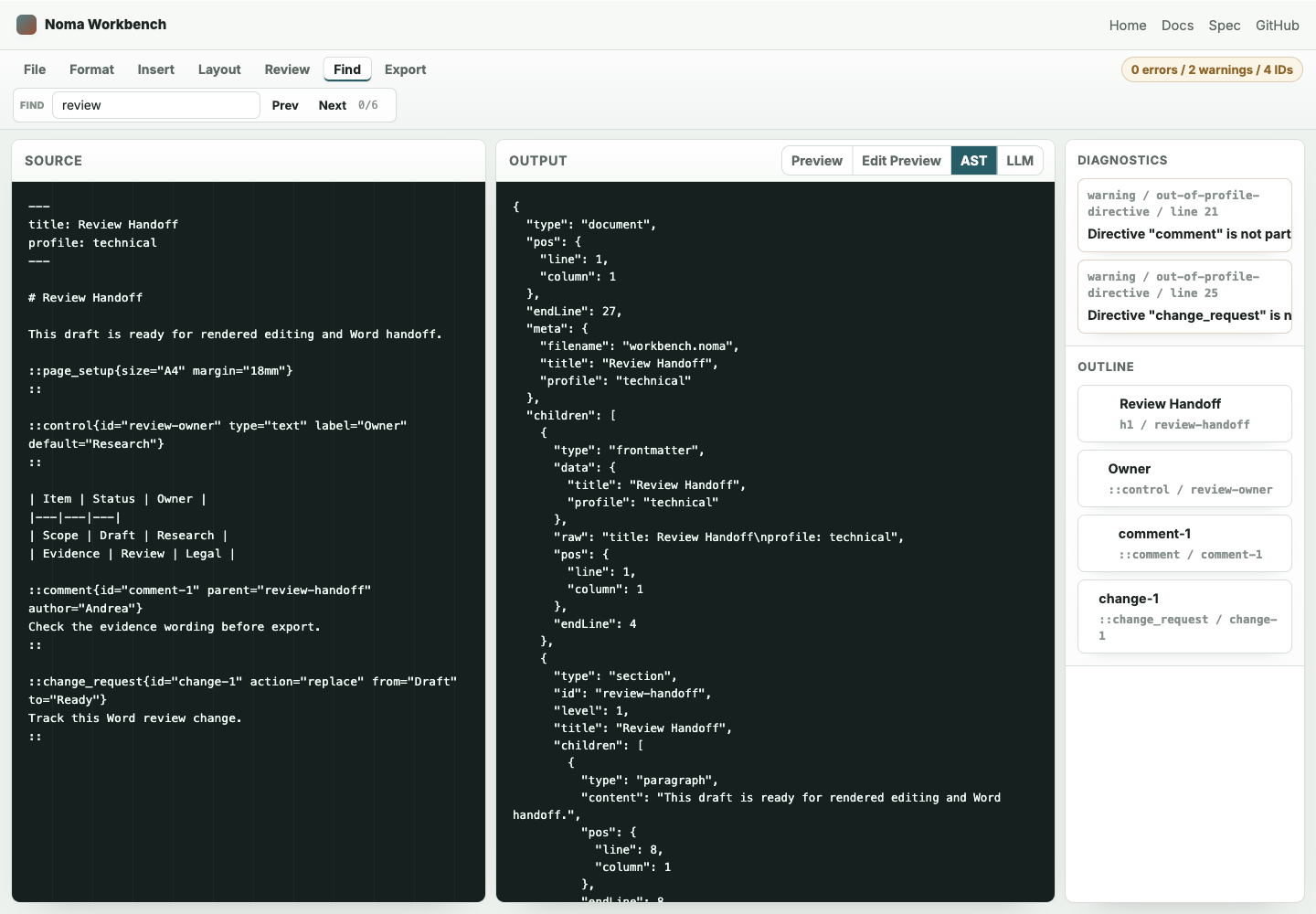

Authoring workflow

1. Load an example or click New.
2. Draft in the source pane.
3. Use the menu bar to choose a command group, then use the active ribbon for

common formatting and Noma block templates.

1. Watch the status pill and diagnostics panel as the validator checks the

document.

1. Use the diagnostics summary to decide whether to fix syntax, references,

evidence, stale citations, or profile rules before polishing output.

1. Use the outline to jump to headings and ID-bearing blocks.
2. Toggle Edit Preview when you want to revise simple rendered prose

without moving your cursor back to the source pane.

1. Use Tables & Data when a ::table or ::dataset block needs a small

cell, row, or column update.

1. Use Agent Proof when you want to simulate patch ops before writing them.
2. Switch to AST or LLM output when you need to inspect structure or copy

agent context.

1. Download the source or rendered artifacts.

Word-style handoff

The workbench does not try to become a full WYSIWYG clone. It keeps Noma source visible and uses Word-like controls for the operations users expect while drafting:

Rendered editing mode

Edit Preview makes the safe rendered page directly editable for source-backed text blocks:

Edits commit when focus leaves the rendered element. Press Escape before blur to cancel the current rendered edit. Pasted content is inserted as plain text so the preview cannot inject raw HTML into the source.

Complex semantic blocks, tables, datasets, layout directives, comments, tracked changes, and DOCX-specific structures remain source-first unless they have a dedicated side-panel editor. Editing rendered inline markup as plain text also means the changed span is serialized as plain prose, which is the expected tradeoff for this browser-only mode.

Agent proof panel

The Agent Proof panel makes the browser editor agent-oriented without turning it into an agent host. Paste one patch operation or an array of patch operations as JSON:

[
  {
    "op": "update_attribute",
    "id": "decision-q3-direction",
    "key": "status",
    "value": "accepted"
  }
]

Click Prove in the Review tab. The workbench simulates the patch against the current source, parses and validates the post-document, computes pre/post hashes, measures source-line preservation, and renders a proof report in the Output pane.

Apply stays disabled until the proof has a writable post-document with no post-validation errors. A proof with warnings can still be applied, but it is visibly marked as warning state so a human or agent can review the diagnostics before writing.

Share Proof copies a URL fragment that includes proof metadata:

The share link deliberately does not embed the full source or post-source. It is safe to use as a review pointer while the canonical document remains in the repository, local draft, or agent host.

Shared draft handoff

The Collaboration panel shows a live document fingerprint: source hash, line count, byte size, ID count, and diagnostic counts. Use it to confirm two reviewers are discussing the same draft before comparing proof output.

Copy Draft Link creates a URL fragment containing the current .noma source, title, creation time, and SHA-style hash. URL fragments are not sent to the static server during normal navigation, so the deployed workbench can load a shared source without needing an account or database. Treat the resulting link as sensitive if the source document is sensitive.

Copy Review Packet creates a Markdown handoff with the draft link, fingerprint, diagnostics, addressable IDs, and deterministic LLM context. It is designed for GitHub issues, email review, or an agent prompt when a teammate needs enough context to propose a patch without scraping the rendered preview.

Tables and data

The Tables & Data panel discovers ID-bearing ::table and ::dataset directives in the current AST.

Supported editing paths:

When you click Apply, the grid does not rewrite the whole block. It generates granular patch ops such as update_table_cell, insert_table_row, insert_dataset_column, and update_dataset_cell, places them in the Agent Proof panel, runs the proof, and writes only if the proof passes. Row and column deletion remain patch/source operations for now so the browser grid cannot accidentally remove data.

Diagnostics-first editing

The diagnostics side panel now starts with a severity summary. Individual diagnostics remain clickable when they have line information, so syntax, reference, evidence, citation, and profile problems can be corrected at the source line instead of discovered only during export.

This is intentionally different from typical Markdown preview panes. The workbench treats diagnostics as part of the writing loop, not as a terminal build step.

For a true Word package, use the copied DOCX command after saving the source:

npm run noma -- render document.noma --to docx --out document.docx

Safety model

The workbench renders with a safe preview posture:

• Raw ::html, ::svg, and ::script escape hatches are blocked.
• External math, diagram, Plotly, and figure image loads are disabled in the

preview path.

• Interactive controls render as static defaults.
• The preview runs in a sandboxed iframe.

This makes the workbench suitable for inspecting untrusted drafts while still surfacing the source and validator diagnostics. For production HTML, render from the CLI with the strictness flags that match your publishing context.

Limitations

The workbench is deliberately source-first:

• It does not hide the .noma syntax.
• It does not offer full visual editing for every semantic block; rendered

editing covers simple text nodes, while the side panel covers proofed table/dataset edits.

• It does not provide realtime multi-cursor collaboration; shared draft links

and review packets are async handoff tools.

• It does not write directly back to a local file without using the browser's

download flow; proofed changes update the browser draft and should still be downloaded or copied into the repository.

• It does not edit DOCX packages in the browser. DOCX export and return paths

stay in the CLI.

Those constraints keep the UI static-site deployable and make the parser, validator, and renderers the only source of document truth.
